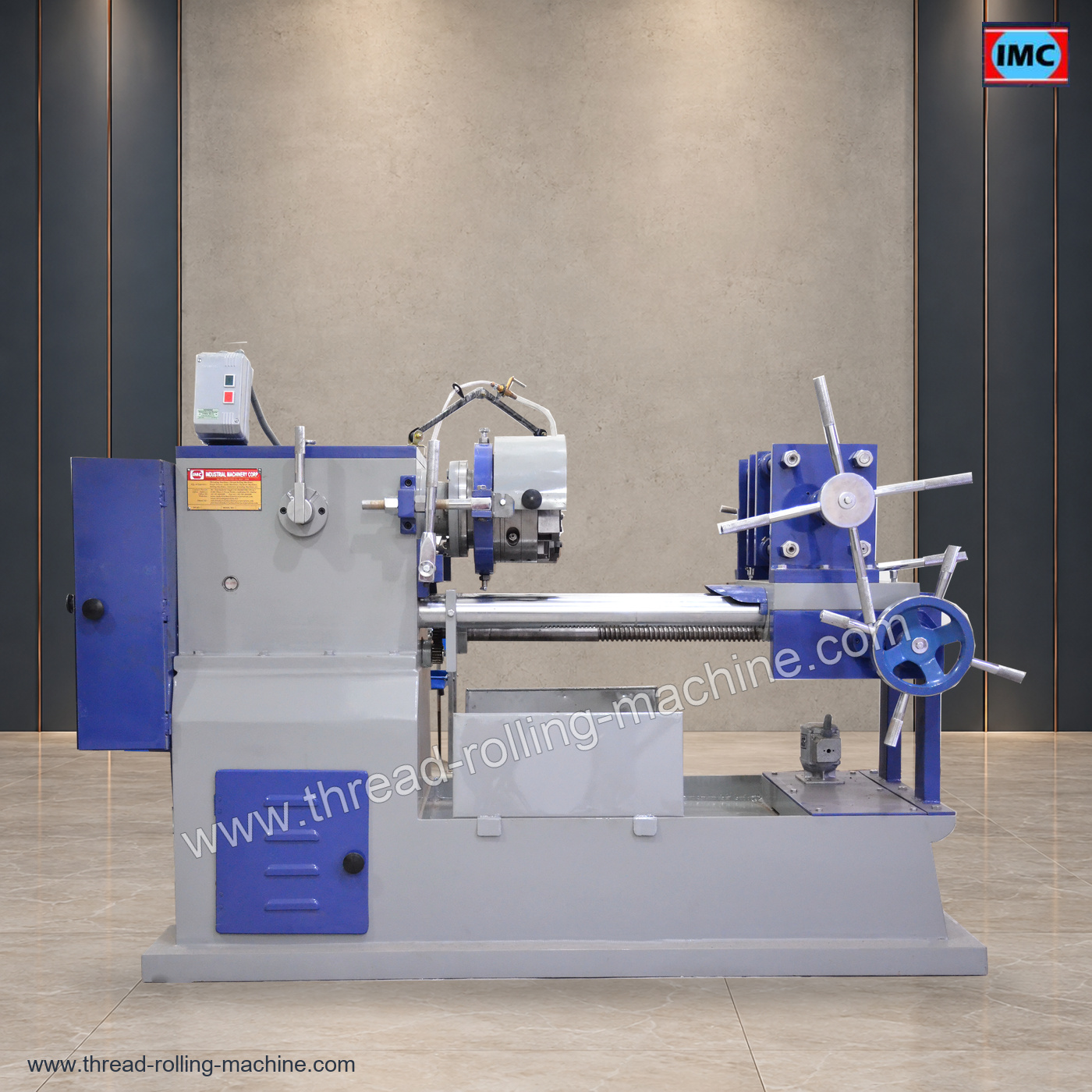

IMC Bar Threading Machine Manufacturing Unit In India

Industrial Machinery Corporation (IMC) is a reputable manufacturer of Bar Threading machines, based in India, with more than 12 years of experience in the industry. IMC is known for producing high-quality machinery that is durable, efficient, and easy to use.

IMC Machines are designed to thread different sizes of bars quickly and accurately, making them ideal for use in various industries such as construction, manufacturing, and metalworking. These machines are easy to operate and maintain, and they come in different sizes and models to cater to various needs.

One of the advantages of IMC's Bar Thread Cutting Machines is that they are made from high-quality materials and built to last, ensuring that users get value for their money. IMC also offers excellent customer service and technical support, ensuring that clients get the best possible experience with their products.

Overall, IMC has built a reputation as a reliable and trustworthy manufacturer of Bar Thread Cutting Machines, and their products have been widely used by businesses and industries worldwide.

VIEW SPECIFICATIONS

Available Options

Diameter of the job

Thread Length Require

Thread Type

Purchase

Expected Price

Specifications

A bar threading machine is a mechanical device that is used to cut threads on the ends of metal bars. This machine are commonly used in manufacturing settings where threaded bars are required for various applications, such as in the construction, automotive, and aerospace industries.

The process of bar threader involves cutting grooves into the surface of the bar in a spiral pattern. This creates a thread that can be used to join the bar to other components or to secure it in place. Bar threader machines typically use a set of dies that are rotated around the bar to cut the threads.

There are several types of bar thread cutting machines available, including manual, semi-automatic, and fully automatic models. Manual machines require the operator to manually adjust the cutting dies and feed the bar through the machine, while semi-automatic and fully automatic machines have automated functions to streamline the thread cutting process.

Our machines are used in a variety of applications, such as in the production of bolts, nuts, and screws. They can also be used to thread pipes and other cylindrical objects. These machines are essential tools for many manufacturing industries and play a critical role in ensuring the quality and consistency of threaded components.

Below is the list of cuts that our Bar Thread Cutting Machines manufactured at our unit based in Ludhiana can cut:

Matric
BSP
BSPT
NPT
UNF
UNC
BSW
Acme Threads
B.S.F

Here is the list which contains the names of various parts of Bar Thread Cutting Machines made by industrial machinery corporation at Ludhiana base unit:

Base
Head Stock
Saddle
Bed or Pillar Type Clamping Vice
Die Head

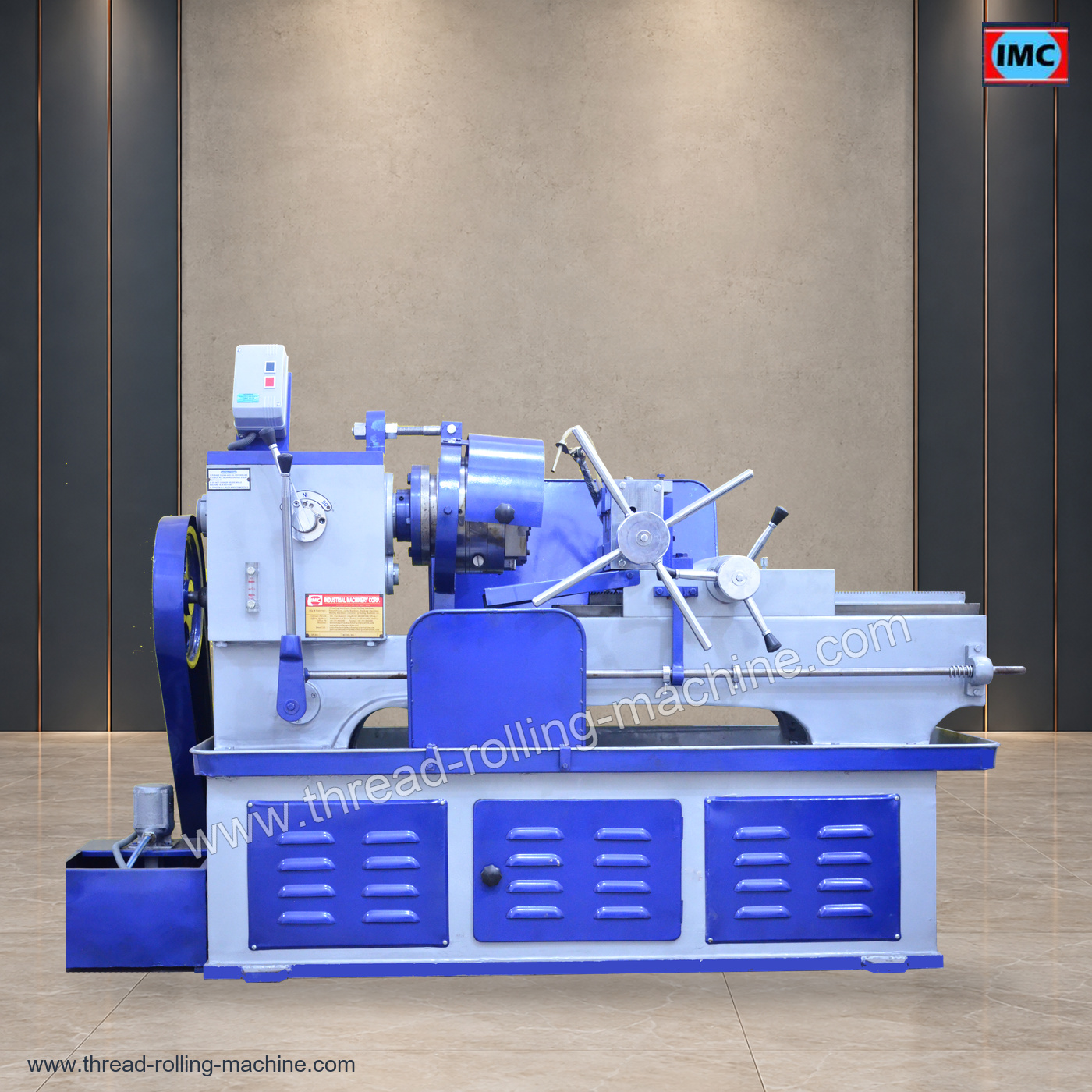

Bar Thread Cutting Machine Specifications:

Model	1/4"to 1" (Bed Type)	3/8" to 1.1/2" (Bed Type)	1/2" to 2.1/2" (Bed type)
Saddle Movement	10"	13"	22"
Spindle Speed Range	75-140	75-140	45-90
Number of Spindle Speed	2	2	3
Threading Capacity	1/4" to 1"	3/8" to 1.1/2"	1/2" to 2.1/2"
Production per Hour	60-80	60-80	70-90
H.P. Required	3 H.P.	3 H.P.	7.5 H.P.
Lead Screw	Optional	Optional	Optional
Weight (KG) Approx.	500	550	990

Bar Thread Cutting Tangential Chaser

IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment's, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.

IMC Chaser is interchangeable. If one Pc. Of a chaser, set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in thread cutting performance and the damaged set can be replaced without the necessity of replacing the entire set.

Read More..
