With an familiarity of over a decade, Industrial Machinery Corporation has been an ace in the turf of manufacturing Hydraulic Thread Rolling Machine and has won several awards and accolades for its uncompromising and non-stop efforts to provide customers with the best Hydraulic Thread Rolling Machine. Because of this constant and unvarying effort in the pursuit, we have become one of the best industrial machinery manufacturers in India. We specialize in manufacturing of different types of industrial machinery but have special specialization in manufacturing Hydraulic Thread Rolling Machine. Our continuous endeavors in this field have given us the reputation of being the most trusted, reliable and reputed names in the business of manufacturing thread rolling machines in India. Our zeal and intensity for giving our best every time comes from the fact that customers worldwide have unflinching faith in Hydraulic Thread Rolling Machine manufactured at Industrial Machinery Corporation. And this is not just a blind faith as The machine that we furnish here is made up best quality raw material which is double-checked prior to getting in to our manufacturing unit. We have a promise to self to provide the client with the best and in timely manner without compromising in quality even a bit. Under these circumstances, we make sure that prices we offer don’t go up and beyond the reach of our clients. Our research team works continuously to bring out even a better version of every machine and in this attempt; we manufacture two types of Hydraulic Thread Rolling Machine. Thread rolling is basically a cold-forging process which forms the entire length of an external thread by displacing the material. Threads are produced on the blanks of predetermined diameter by a rolling action under pressure and between two rotating cylindrical steel roll dies whose working faces are suitably threaded. This entire action takes place in such a way that the part of the blank metal is replaced by a bout of thread and raised in unbroken lines to form the crest of the thread.
Available Options
Specifications
With an familiarity of over a decade, Industrial Machinery Corporation has been an ace in the turf of manufacturing Hydraulic Thread Rolling Machine and has won several awards and accolades for its uncompromising and non-stop efforts to provide customers with the best Hydraulic Thread Rolling Machine. Because of this constant and unvarying effort in the pursuit, we have become one of the best industrial machinery manufacturers in India. We specialize in manufacturing of different types of industrial machinery but have special specialization in manufacturing Hydraulic Thread Rolling Machine. Our continuous endeavors in this field have given us the reputation of being the most trusted, reliable and reputed names in the business of manufacturing thread rolling machine in India. Our zeal and intensity for giving our best every-time comes from the fact that customers worldwide have unflinching faith in Hydraulic Thread Rolling Machine manufactured at Industrial Machinery Corporation. And this is not just a blind faith as The machine that we furnish here is made up best quality raw material which is double-checked prior to getting in to our manufacturing unit. We have a promise to self to provide the client with the best and in timely manner without compromising in quality even a bit. Under these circumstances, we make sure that prices we offer don’t go up and beyond the reach of our clients. Our research team works continuously to bring out even a better version of every machine and in this attempt; we manufacture two types of Hydraulic Thread Rolling Machine. Thread rolling is basically a cold-forging process which forms the entire length of an external thread by displacing the material. Threads are produced on the blanks of predetermined diameter by a rolling action under pressure and between two rotating cylindrical steel roll dies whose working faces are suitably threaded. This entire action takes place in such a way that the part of the blank metal is replaced by a bout of thread and raised in unbroken lines to form the crest of the thread.
After this the roll die rotates parallel to it or tilted horizontal spindle and these dyes are made up of specially formed steel alloy which gives extra toughness and rigidity to Hydraulic Thread Rolling Machine to bear all kinds of wear and tear while performing in the manufacturing unit.

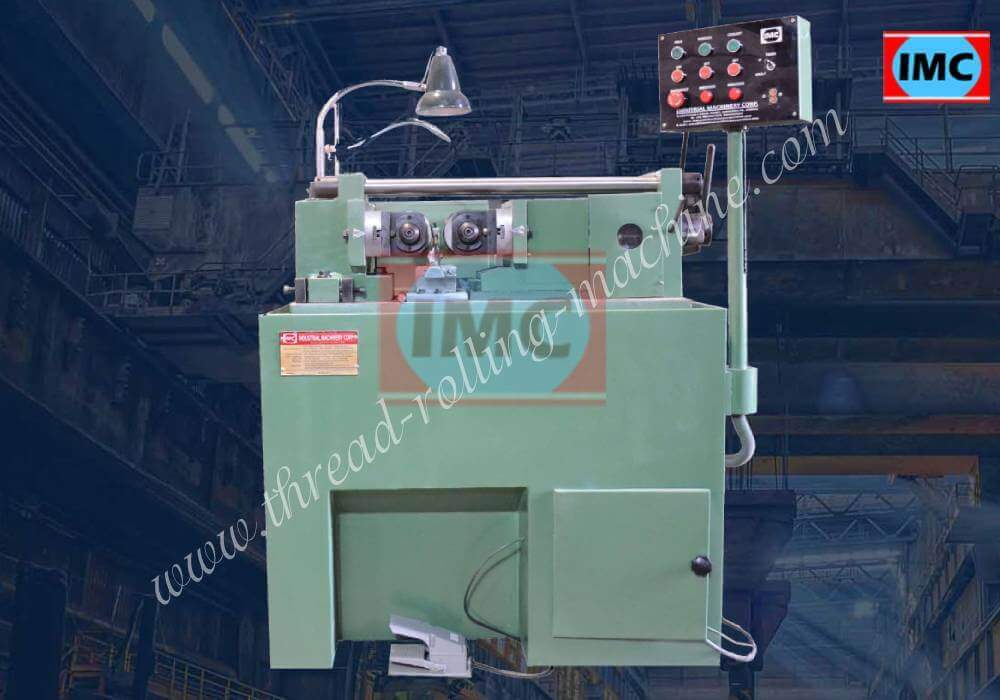

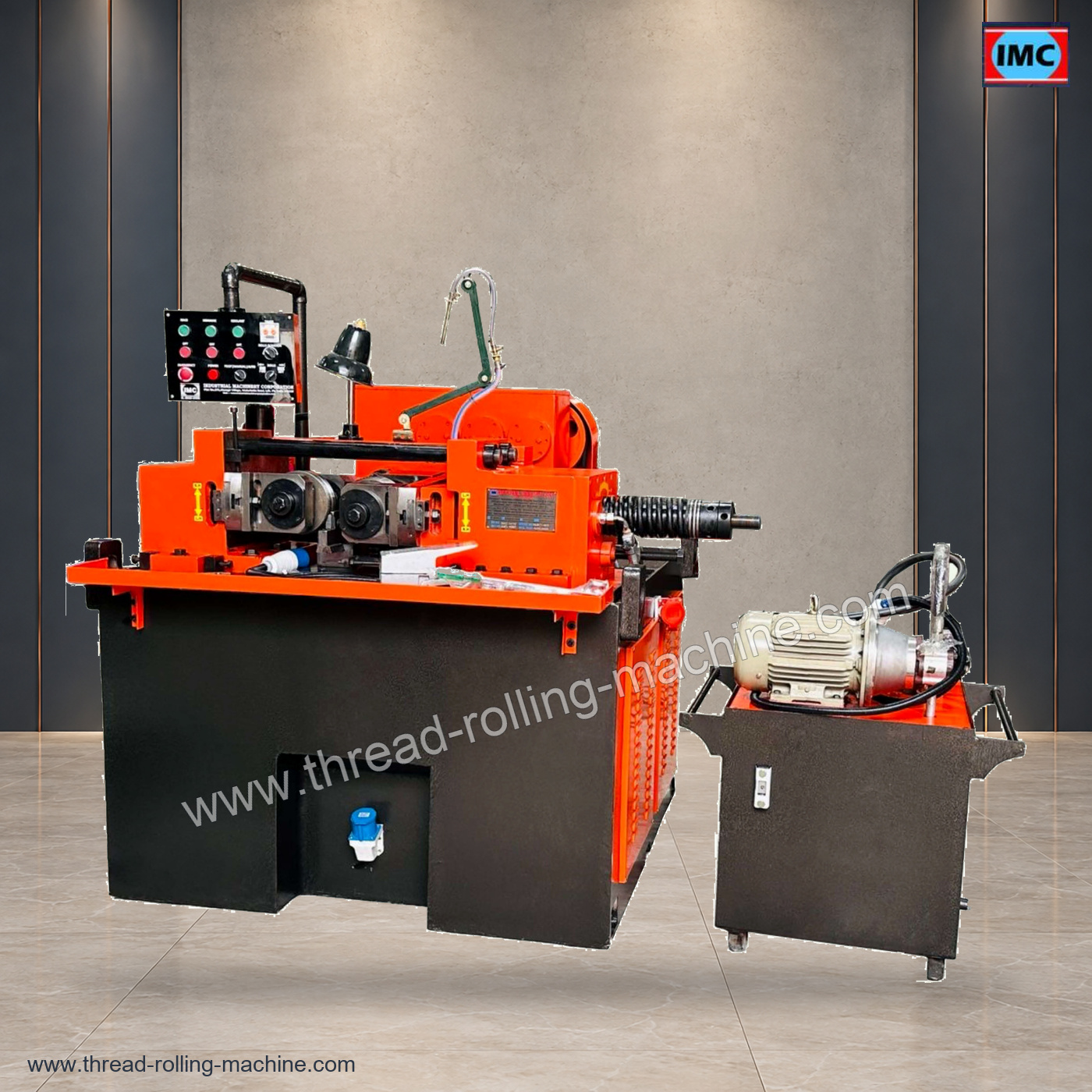

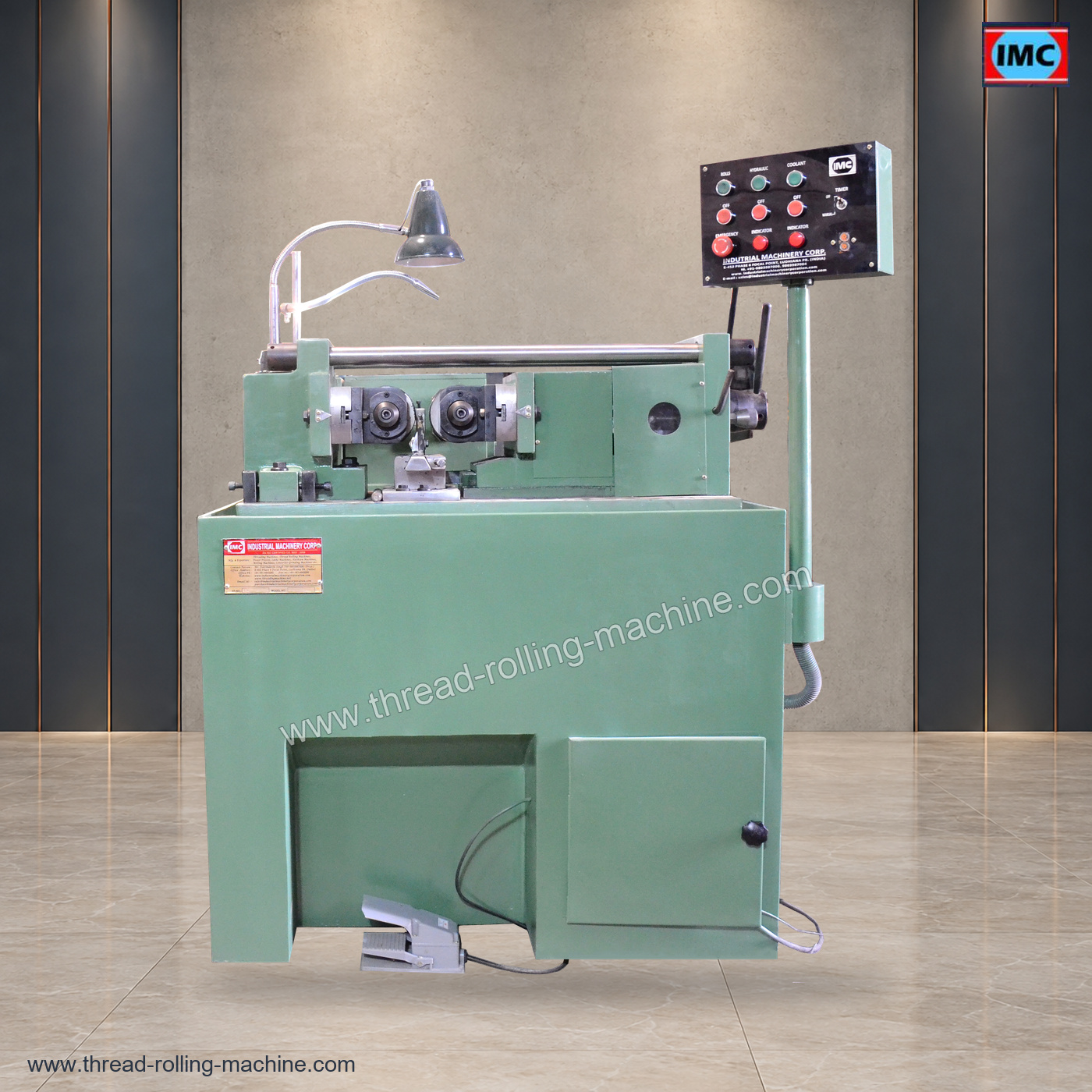

Let’s assess the type 1 of this machine known as Hydraulic Thread Rolling Machine 2 roll. Following are the features of Hydraulic Thread Rolling Machine [two roll type]
• The two-roll type of Machine gives the user the independence of deep forming of threads, worms and serration knurls. Thanks to its powerful construction and unique design.
• The usage of the machine is so simple that even a neophyte after watching this Hydraulic Thread Rolling Machine can start working on this machine. The factors responsible for this are the Grade -1 cast hardened and duly scrapped slide and easy adjustment of machine and tooling.
• This Hydraulic Thread Rolling Machine is the best fit for mass production and the best surface finishes.
| Model | IMC-25 | IMC-40 | IMC-50 | IMC-80 | IMC-100 | IMC-120 |
| Max. Pitch Can be Rolled (in mm) | 2.5 | 3.5 | 4.0 | 5.0 | 5.5 | 8 |
| Max. Dia can be Rolled in feed (in mm) | 25 | 40 | 50 | 80 | 100 | 125 |
| Max. Dia can be Through feed (in mm) | 16 | 28 | 35 | 40 | 50 | 70 |
| Max. Rolling Length in feed (in mm) | 80 | 150 | 150 | 150 | 150 | 150 |
| Max. Rolling Length Through feed | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite |
| Max. Outer Dia Thread Rolls (in mm) | 150 | 180 | 200 | 220 | 220 | 220 |
| Spindle Dia (Bore Dia) (in mm) | 54 | 54 | 69.85 | 69.85 | 69.85 | 69.85 |
| Max. Rolling Force | 8 Tons | 13 Tons | 15 Tons | 24 TONS | 30 Tons | 40 Tons |
| Power for Roll Spindles | 3 H.P. 1400 RPM | 5 H.P. 1400 RPM | 7.5 H.P. 1400 RPM | 10 H.P. 1400 RPM | 12. 5 H.P. 1400 RPM | 15 H.P. 1400 RPM |
| Power for Hydraulic Pump | 2 H.P. | 3 H.P. | 5 H.P. | 5 H.P. | 5 H.P. | 7.5 H.P. |
| Power for coolant pump | 0.1 H.P. | 0.1 H.P | 0.1 H.P | 0.1 H.P | 0.1 H.P | 0.1 H.P. |
Thread Rolling Dies 3 Roll Type Thread Rolling Dies 2 Roll Type

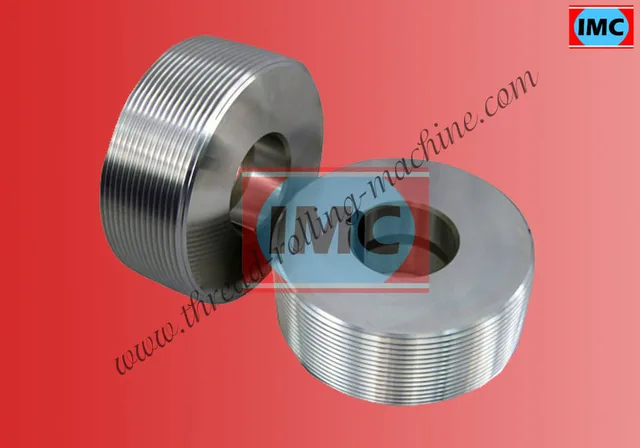

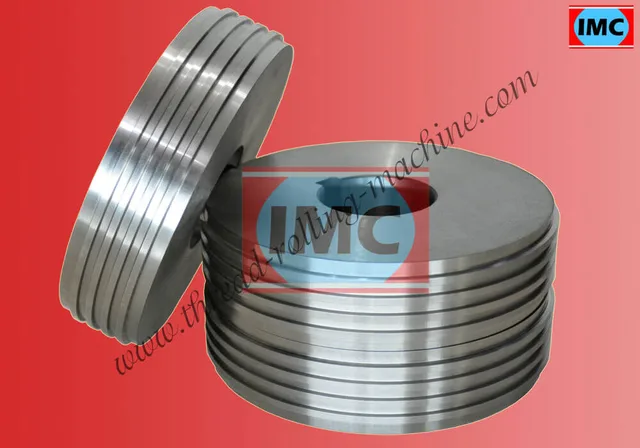

IMC Thread rolls are used on the thread rolling machine. These rolls come in the set of two and three pieces manufactured from D2,D3 and M2 Material to suit any type of machine. For any specification of thread such as ISO Metric Din Whiteworth America, Trapozodical, Acme etc
