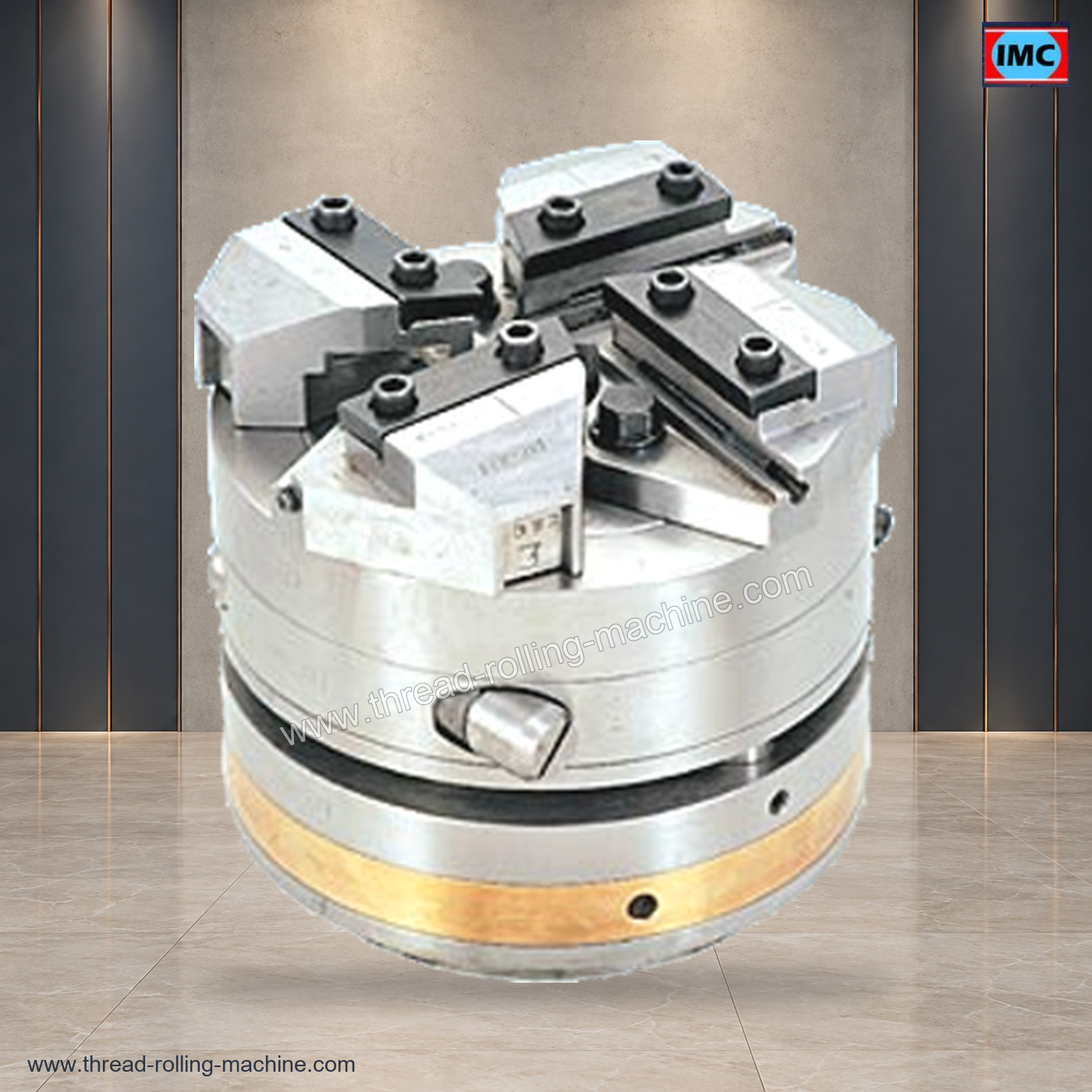

Lanco Type Threading Die Head

Specifications

Industrial Machinery Corporation, in a very short period of time, has gained much popularity and is now distinguished amongst the best suppliers’ of Threading Die Head. All the machines that we make are highly appreciated in the world market and are in demand by most of the customers and the main reasons behind that are the supreme quality and smooth functioning of these machines. All the qualities that our machines and specially Lanco Type Die Head machine are manufactured at our Ludhiana based manufacturing unit where every vigilant step is taken to ensure that that no raw material with even a hint of any flaw is allowed to be used in making these machines. This is the main reason why our Lanco Type Die Head is the most popular and most searched in both the market as well as the internet. It is due to this pure love and faith of our customers which makes us perform even better and our research team to innovate a better technology every now and then. We own a refined infrastructure, which is well-equipped with all the high-end tools and machines. Additionally, we are backed by a skilled and experienced squad of experts whose dedicated and talented efforts give us the potency to implement the varied requirements of our valued clients with the highest adeptness.

The Threading Die Head manufactured by us has surpassed all the strict tests and stringent assessments of heat treatments. This Lanco Type Die Head is available in assortment of types with us like pipe threading die head, bar threading die head, bolt threading die head and rebar threading die head. Our Lanco Type Die Head is capable of working under high pressure of production and despite that give out the best and the most accurate outputs. They have been designed to give a high-quality performance in loner use. We ease the dilemma of our customers by providing them best customized lanco type die head machine as per their requirement at very reasonable rates. The Lanco Type Die Head is a revolving type machine for application to hand operated, semi-accurate to hand operated, semi-automatic and automatic machine. This machine is made up using best quality steel to face even the harshest of conditions and all sorts of wear and tear an then too give results which are enthralling and fascinating for the users. Lanco Type Die Head machine is fully perfect for threading up to and including class three of tolerance. This Lanco Type Die Head machine is extremely famous for its ability to cut even a course pitch thread in a single pass. Our Lanco Type Die Head has a wide range of converge, permit rapid set up, gives trouble free operations.

Following are the features of our Lanco Type Die Head machine:

• Wide range coverage for threading diameters 1/4" to 9-1/4" (6 to 235mm)

• Heads available for standard, heavy-duty and large diameter applications

• Lanco Type Die Head are for producing straight threads and "jam cutting" shorter length taper threads like NPT and BSTP

• Seven sizes to thread from 1/4" to 6", 6 to 152 mm, 1/8" to 6" nominal pipe.

• Our Lanco Type Die Head are used to generate straight threads of relatively fine pitch and short length on large diameters

• Incorporates six chasers with a range of 1-7/8" to 9-1/4" maximum oversize range

Specifications:

Die-Head Size	Holder Set/Sets (Provided)	Chaser Section
1/4” to 1”	1/4” to 1”	3” x 1.3/64 (Set of 4 Pcs)
3/8” to 1. 1/2"	3/8” to 1. 1/2"	4” x 1.3/64 (Set of 4 Pcs)
1/2" to 2.1/2”	1/2" to 1. 1/2" 1.5/8 to 2.1/2"	4” x 1.1/4” (Set of 4 Pcs)
1" to 4"	1" to 2" 2.1/2" to 4"	4” x 1.1/4” (Set of 4 Pcs)  5” x 2.1/4” (Set of 4 Pcs)
2.1/2" to 6"	2.1/2"" to 3"  3.1/2"  to 4" 4.1/2" to 6"	5” x 2.1/4” (Set of 6 Pcs)
4" to 8"	4” to 5.1/2”  5.1/2” to 8”	5” x 2.1/4” (Set of 6 Pcs)

Lanco Type Threading Die Head Tangential Chaser

IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipments, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.

IMC Chaser is interchangeable. If one Pc. Of a chaser set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing entire set.
